Structural Fabrication (MS & SS)
Techno Aid Inc executes structural steel fabrication for industrial platforms, mezzanine floors, pipe racks, equipment support structures, walkways, stairways, handrails, and industrial building structures. All structural work is carried out as per design drawings and IS structural standards using mild steel (MS) or stainless steel (SS) as required.
We have an in-house fabrication facility equipped with CNC flame cutting, plasma cutting, press braking, and welding stations. Our fabrication team handles high-quantity and project-specific structural requirements with precision and quality documentation.
Structure Types We Fabricate
| Structure Type | Material | Standard |
|---|---|---|
| Platforms & Mezzanines | MS (IS 2062 Gr. B) | IS 800 / IS 1161 |
| Pipe Racks & Sleepers | MS / SS 304 | IS 800 / ASME |
| Stairways & Handrails | MS / SS 304 / SS 316 | IS 4923 / Factory Act |
| Equipment Skid Frames | MS / SS 304L | IS 2062 / Client Spec |
| Industrial Sheds | MS (Pre-engineered) | IS 800 / IS 875 |
| Walkways & Grating | MS / FRP / SS 304 | IS 4923 / Factory Act |

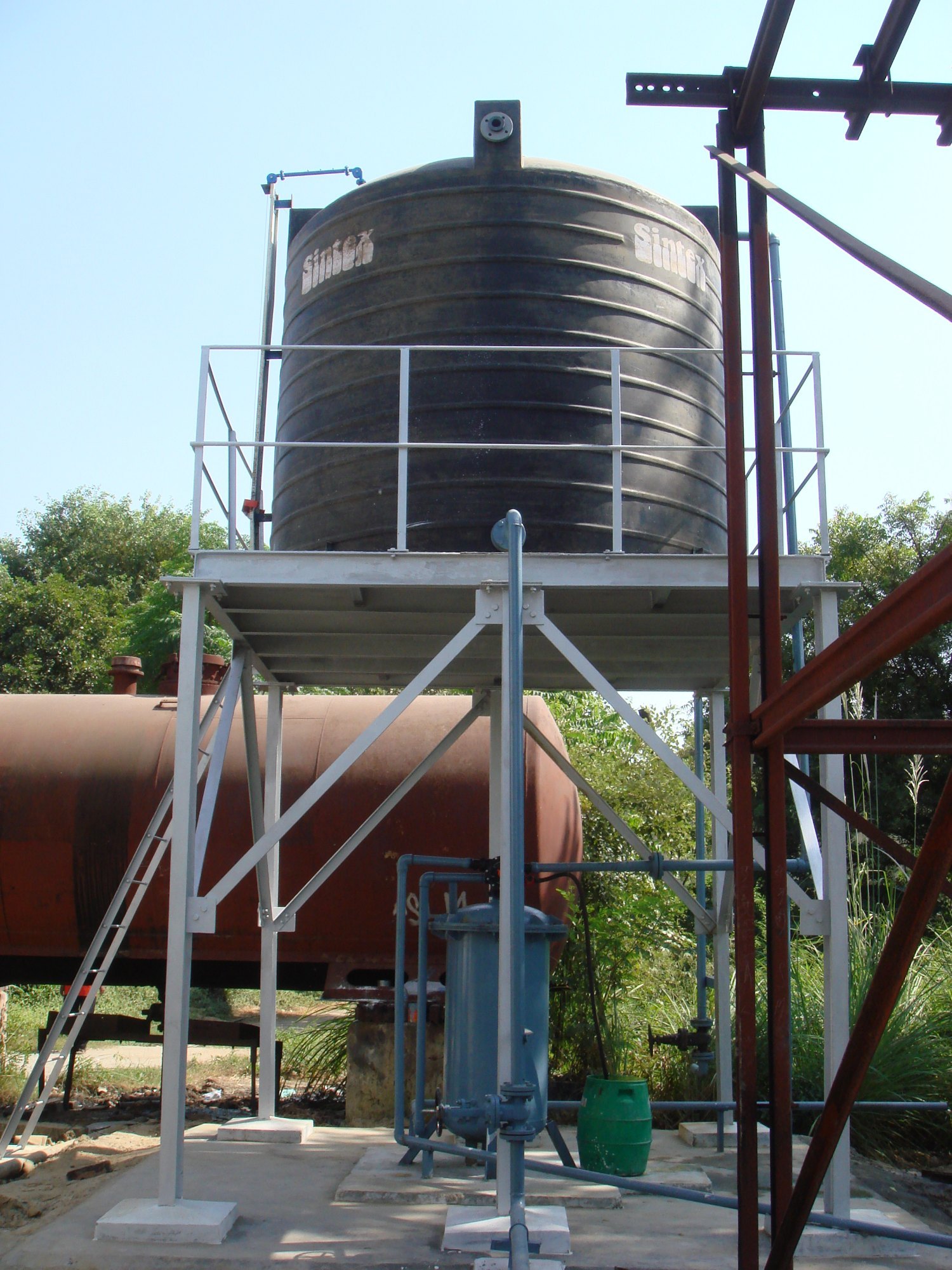

| Tank Support Structures | MS / SS 304 | IS 800 / IS 2825 |
Key Features & Capabilities
- In-house CNC plasma/flame cutting and press braking
- SMAW, GMAW, GTAW welding with qualified welders (BIS/ASME)
- Surface treatment: shot blasting (SA 2.5), epoxy priming, and painting
- Hot-dip galvanizing (HDG) for outdoor and corrosive environments
- Third-party inspection and QAP documentation
- Modular fabrication for easy site erection
- Load calculations and structural design review available
- Precision fit-up and dimensional control as per GA drawings
Surface Treatment & Coating
All structural fabrications undergo surface preparation and coating as per project specification. Standard treatment includes dry abrasive blast cleaning to Sa 2.5 (ISO 8501-1), followed by two-coat epoxy primer system with polyurethane topcoat for industrial environments. For outdoor or coastal environments, hot-dip galvanizing (HDG) to IS 2629 is available as a superior corrosion protection option. SS structures are passivated or electropolished as required.
