Process Piping (SS / MS / HDPE)
Techno Aid Inc undertakes complete process piping fabrication and installation for industrial plants across Maharashtra. We handle general utility piping, process piping, and service lines in Stainless Steel (SS), Mild Steel (MS), and HDPE materials. Our work covers design review, material procurement, spool fabrication, field installation, pressure testing, and documentation as per project P&IDs.
All piping work is carried out by qualified and certified welders. We perform hydrostatic, pneumatic, and radiographic testing (RT) as required. Our piping team is experienced in chemical plants, water treatment plants, pharmaceutical utilities, and general industrial facilities.
Key Features & Capabilities

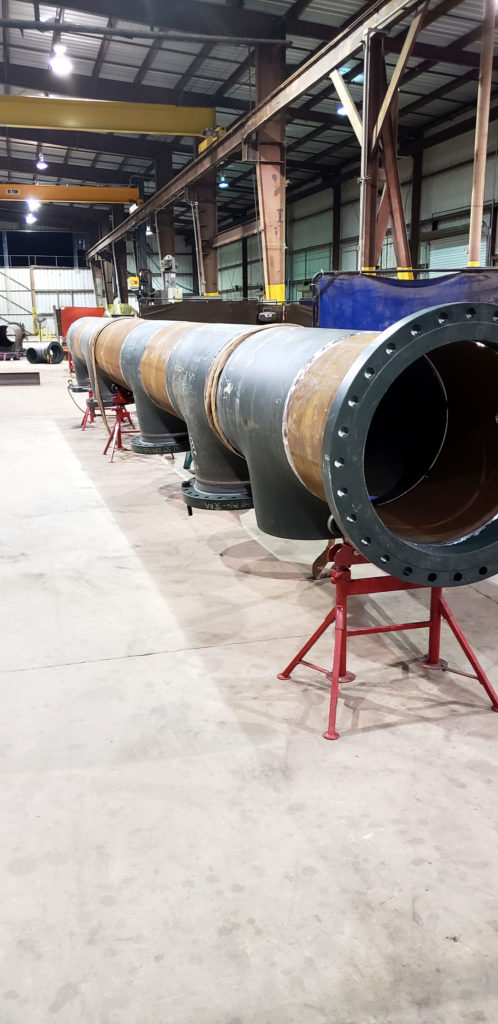

- Fabrication of pipe spools in shop and field as per isometric drawings
- SMAW, GTAW (TIG), and GMAW (MIG) welding processes
- Hydrostatic and pneumatic pressure testing as per P&ID requirements
- Radiographic testing (RT) and dye penetrant testing (DPT) available
- Pipe supports, hangers, and expansion joints fabrication and installation

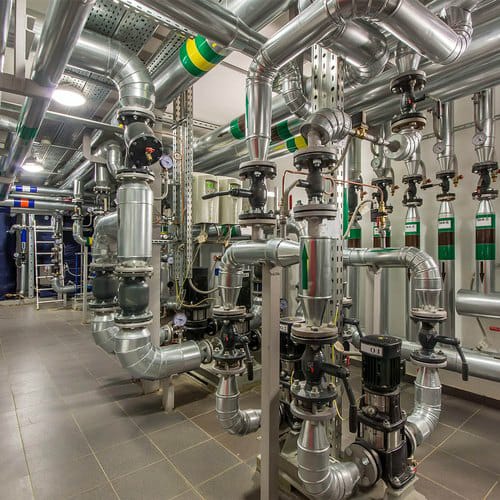

- Insulation: hot & cold pipe insulation with aluminum cladding
- Complete documentation: weld maps, test reports, MTCs
- Experienced in chemical, pharma, and water treatment plants
Technical Specifications
| Parameter | Specification |
|---|---|
| Pipe Material | SS 304 / SS 316L / MS (IS 2062) / HDPE / GI |
| Size Range | ½" NB to 24" NB (larger on request) |
| Pressure Rating | 150# to 600# ASME; up to 100 kg/cm² hydrotest |
| Welding Processes | SMAW (stick), GTAW (TIG), GMAW (MIG) |
| Testing | Hydrostatic, Pneumatic, RT, DPT, MPT |
| Design Standard | ASME B31.3 (Process) / ASME B31.1 (Power) / IS 1239 |
| Fittings | BW / SW / Threaded – as per ASME B16.9 / B16.11 |
| Flange Standard | ASME B16.5 / BS 4504 / IS 6392 |
| Insulation | Rockwool / Glass Wool with Al/SS cladding |
| Documentation | WPS, PQR, WQT, Weld Log, Hydrotest Reports, MTC |
Industries & Applications
Our process piping services are deployed across a wide range of industries including water treatment and effluent treatment plants, chemical and petrochemical facilities, pharmaceutical and biotech manufacturing utilities, food and beverage processing plants, power and energy facilities, and general industrial manufacturing plants requiring utility and process piping networks.
